R20 Collaborative Robot
Engineered to power the most demanding industrial applications, the R20 delivers industry-leading payload capacity of up to 20kg—empowering your business to scale automation like never before. Whether it’s heavy-duty pick-and-place, precision machine tending, or high-speed packaging and palletizing, the R20 handles it all with effortless strength and reliability.
Contact UsCORE PARAMETERS
1800mm
Radius
20kg
Rated load
±0.05mm
Repeatability
68kg
Weight
DETAIL PARAMETERS
Robotic Arm

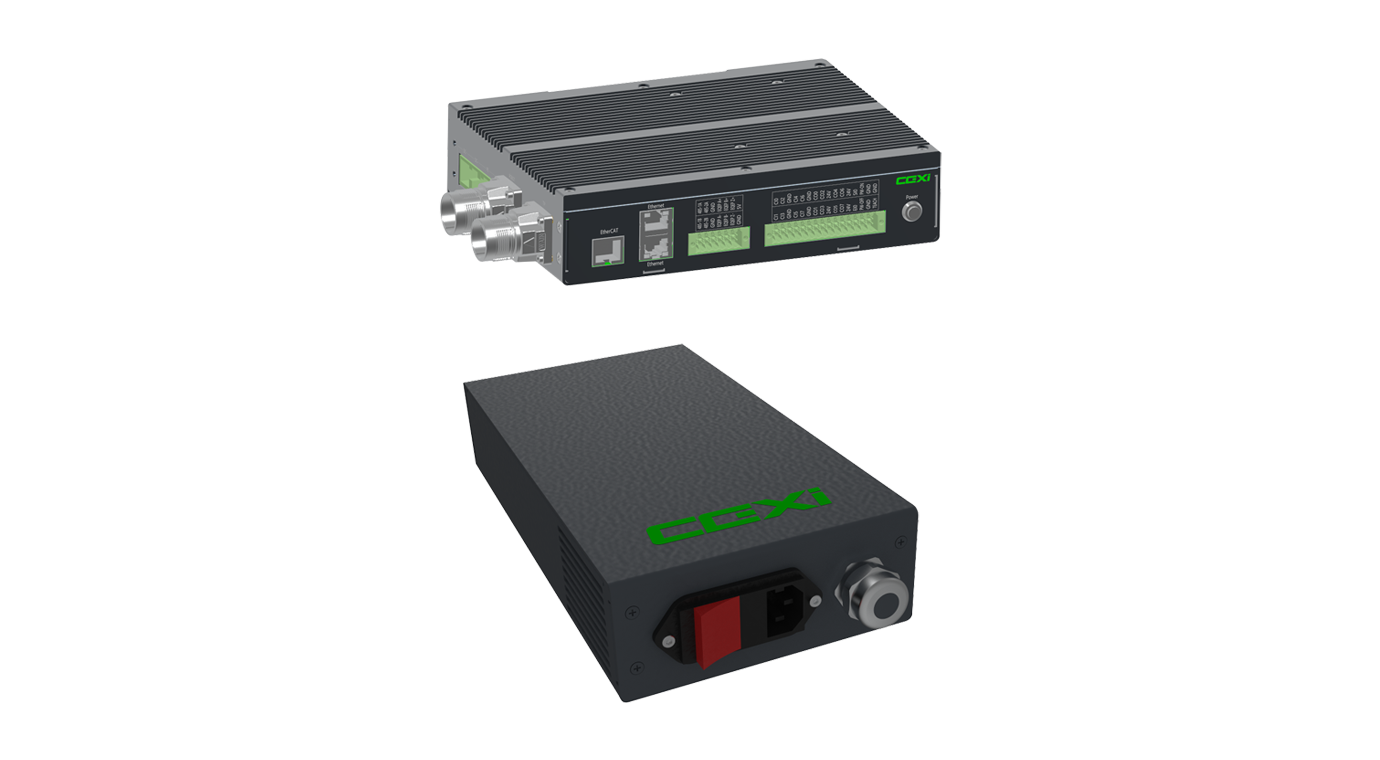

MK Controller
Teaching pendant
| Model | R20 | ||
| Degrees of freedom | 6 | ||
| Rated load（kg） | 20 | ||
| Maximum working radius（mm） | 1800 | ||
| Repeatability（mm） | ± 0.05 | ||
| Control bus/frequency | EtherCAT/1KHz | ||
| Maximum speed of the tool end（m/s） | 4 | ||
| Noise(dB) | ≦60 | ||
| Rated power（W) | 1500 | ||
| Ambient temperature(℃) | -5~55 | ||
| Working environment humidity | 5%~90%RH，No condensation | ||
| Installation method | Any angle | ||
| Protection grade | IP65 | ||
| Weight(kg)(Excluding cables） | 68 | ||
| Tool Port | I/O Port | 1-24V/1APower；2-DI；2-DO；2-AI | |
| COM Port | 1-24V/1APower；1-RS485；1-EtherCAT | ||
| Joint motion parameters | Maximum range of motion | Maximum speed | |
| The fifirst joint axis-J1 | ±360° | 180°/s | |
| The second joint axis-J2 | ±360° | 180°/s | |
| The third joint axis-J3 | ±165° | 210°/s | |
| The fourth joint axis-J4 | ±360° | 270°/s | |
| The fififth joint axis-J5 | ±360° | 270°/s | |
| The sixth joint axis-J6 | ±360° | 270°/s | |
